• Film/Coating Thickness Gauge possesses the following features:

  1.LCD display measurement value and status.
  2.Using Hi- sensibility sensor for precise measurement.
  3.0 point, 2 point and basic, three different calibration
  methods to make it easy to process the system quick
  calibration.
  4.Measure mode: Single, continually and difference .
  5.Data record, recall and delete function.
  6.Data analysis: Average, Maximum, Minimum, standard
  deviation, and measure times.
  7.Beep sounds indication.
  8.Metric / Imperic unit selection.
  9.Low Battery indication.
  10.Auto power off .
  11.LCD backlight .
  12.Simple, compact structure and portable design.


• Technical parameter	Technical specification
  LCD display	3 1/2 display
  Power supply	9V Alkaline battery
  Operation current	About 14mA
  Battery life	Continuously 20 hour
  Auto power off	1 minute
  LCD backlight function	7 second.
  Operation temperature	0~40 ℃
  Operation humidity	10~95% RH
  Low battery indication	7.0V  ± 0.2V
  Product size	67x 30x 175mm
  Weight	133G (without battery)



• Please refer to the manual for details

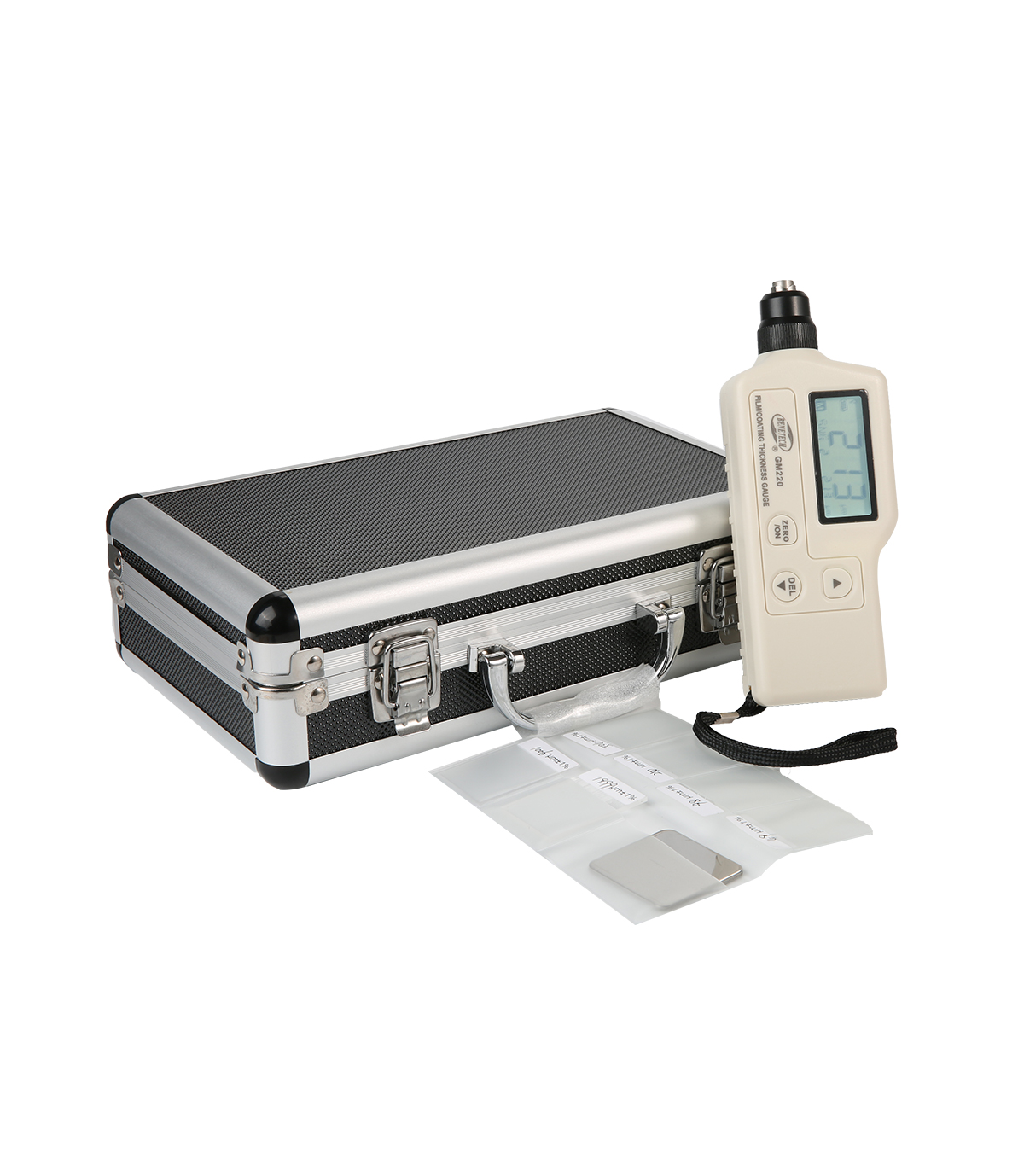

• Digital film coating thickness gauge*1
  9V battery*1
  Instruction Manual*1
  Standard sheet gauge*6
  Iron base material for calibration*1
  PP Packing Box*1

•
•
