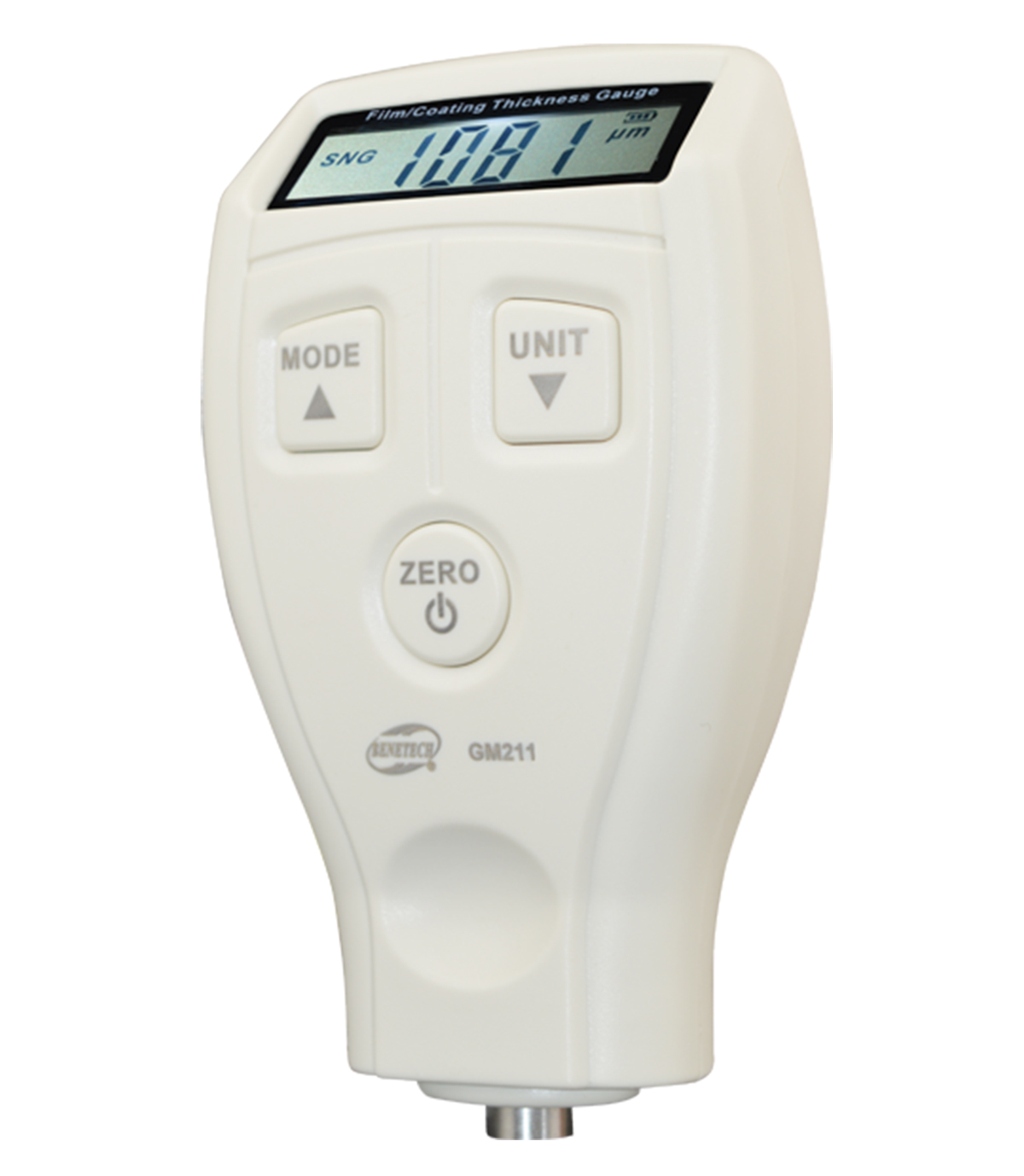

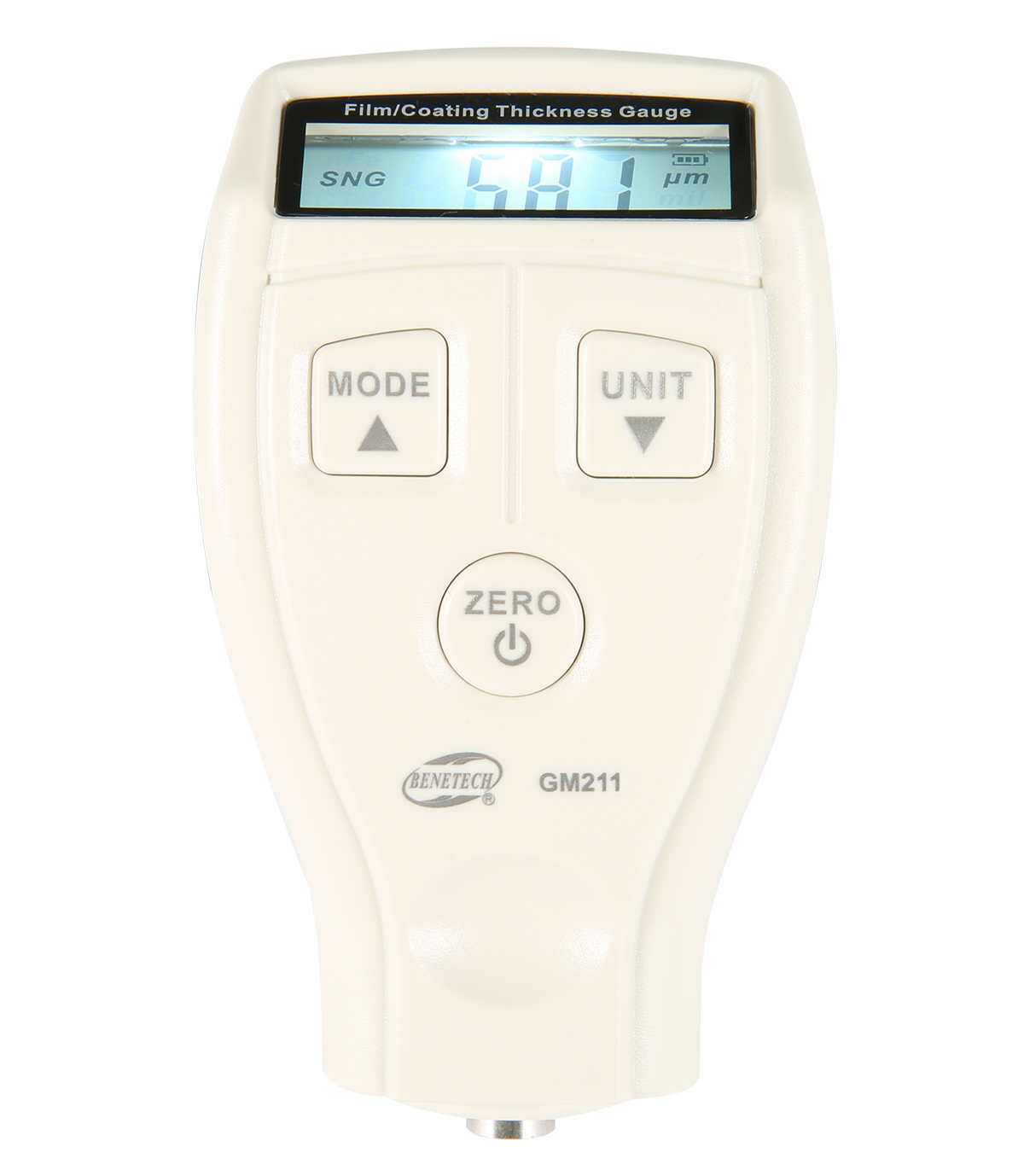

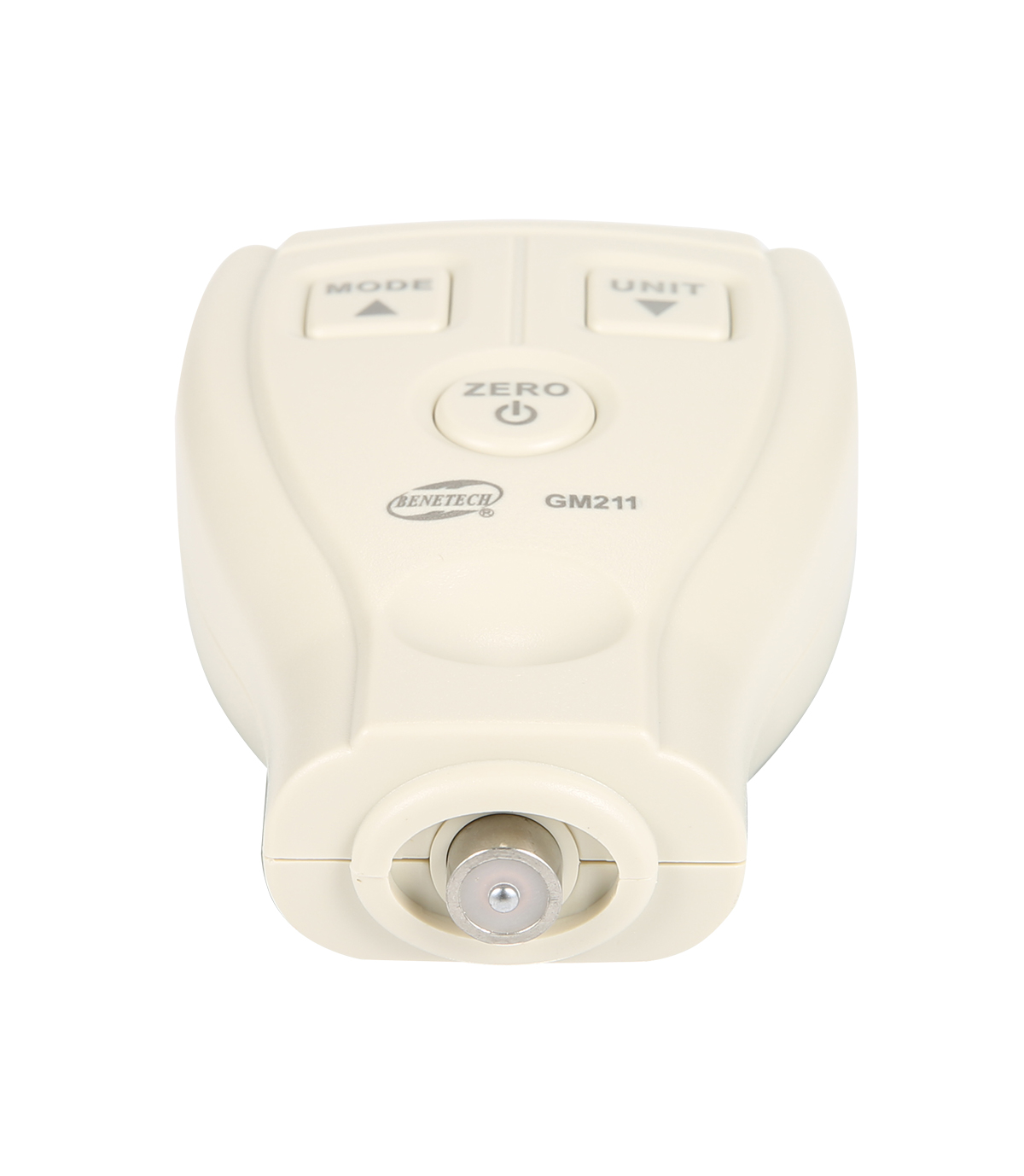

• Film/Coating Thickness Gauge possesses the following features:

  1.Measuring the non-magnetic film on the magnetic metal
  substrate.
  2.Thickness measurement of non-magnetic surface
  coatings on magnetic metal substrates.
  3.Automatically identifying the non-magnetic metal substrate
  or magnetic metal substrate.
  4.Single measurement, continuous measurement and
  differential measurement available.
  5.Zero-point calibration, 2-point calibration and basic
  calibration available.
  6.Metric and imperial units of measurement optional.
  7.LCD backlight.
  8.Automatic shutdown.


• Measurement ranges	0~1500μm/0~59mil/0~1.5mm
  Resolution	(0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm
  Measuring error	≤150μm    ±5μm
  	>150μm    ±(3%H+1μm）
  Minimum diameter of magnetic substrate	12mm
  Minimum thickness of magnetic substrate	0.5mm
  Minimum curvature radius of convex magnetic substrate	2mm
  Minimum curvature radius of concave magnetic substrate	11mm
  Minimum diameter of non-magneticsubstrate	50 mm
  Minimum thickness of non-magnetic substrate	0.5mm
  Operating temperature range	0~40℃
  Operating humidity range	10~95%RH
  Power supply	2*1.5V AAA  batteries
  Overall dimensions	61.98*30.57*107.99mm
  weight	63.98g(excluding of batteries)



• Please refer to the manual for details

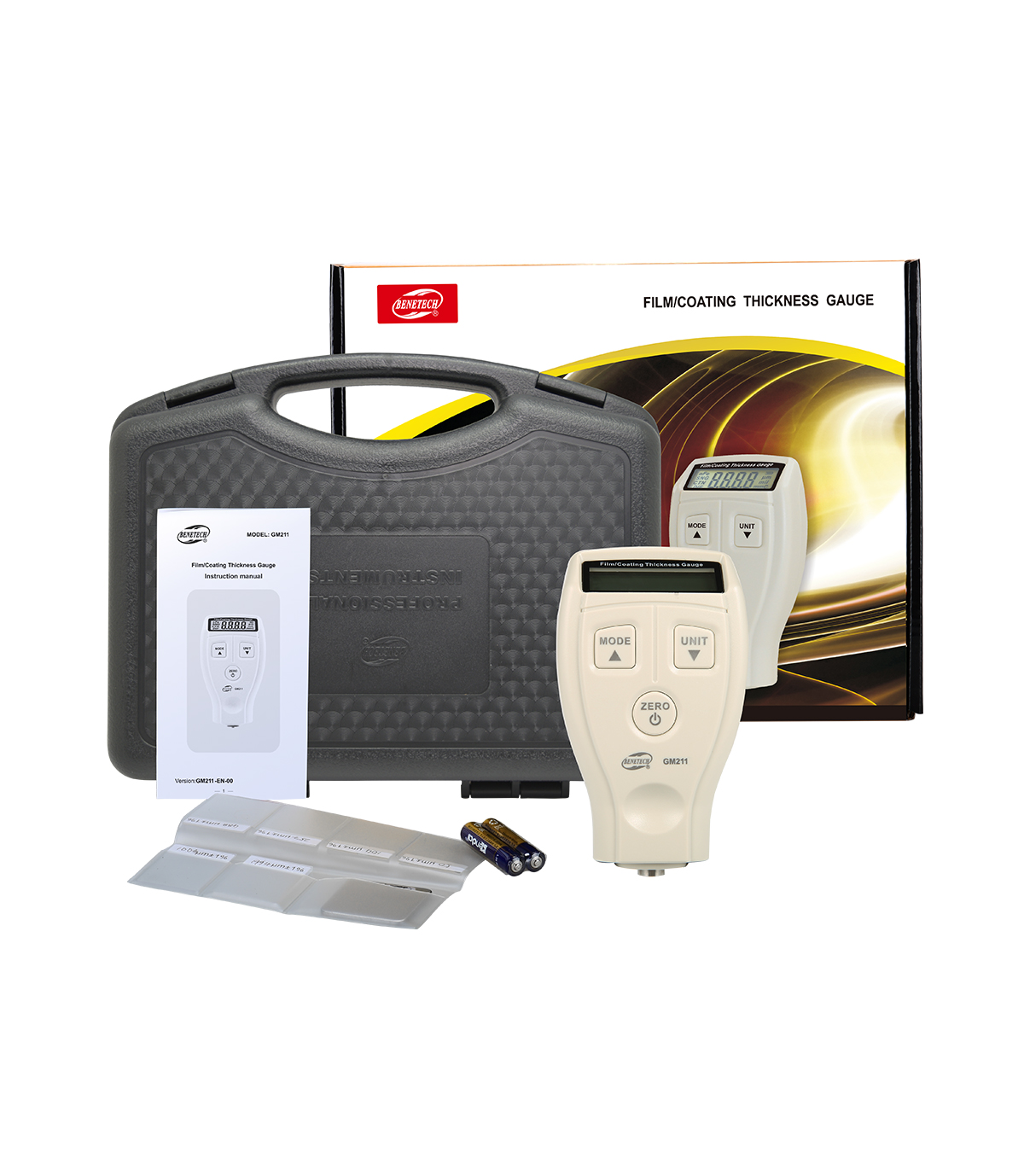

• Host*1
  PP box*1
  Color box*1
  Calibration sheet*6
  Iron base*1
  Aluminum base*1
  Instructions*1
  1.5V AAA battery*2

•
•
